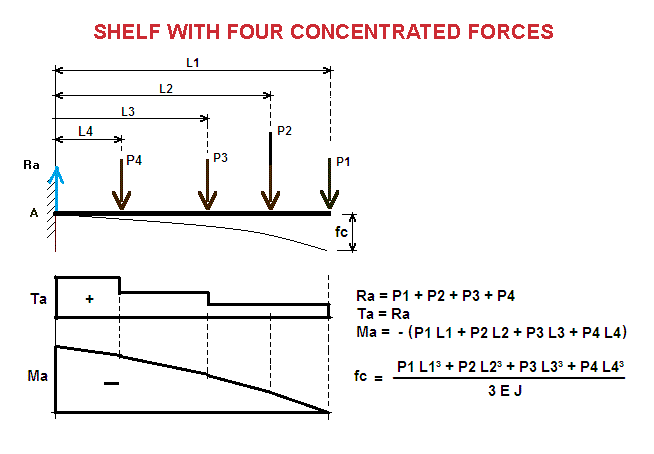

SHELF WITH FOUR CONCENTRATED FORCES
Static calculations
* * *






OBJECT:


n° decimal =

INSERT DATA

for decimals put the point
P1 = daN
P2 = daN
P3 = daN
P4 = daN
L1 = cm
L2 = cm
L3 = cm
L4 = cm
J = moment of inertia cm4
W = resistance modulus cm³
E = elasticity module daN/cm²
f permissible = L / cm
permissible Tension = daN/cm²

RESULTS

Ra = daN
Ma = daNm
Ta = Ra = daN
A = Max Tension found in A = Ma/W = daN/cm²
fc = arrow found = cm
permissible arrow = cm
1 daN = 1 Kg
